Why The AM Security Door Bar is Unique:

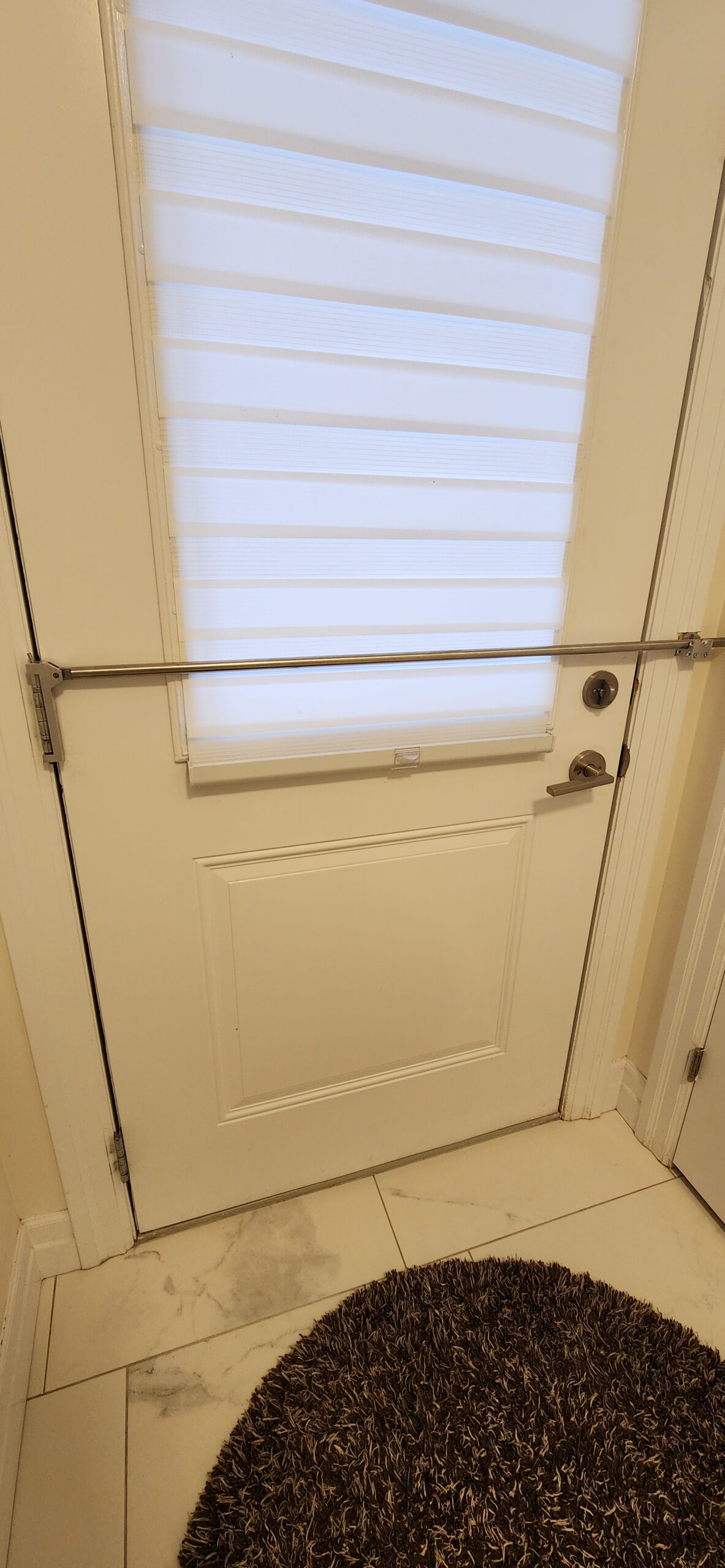

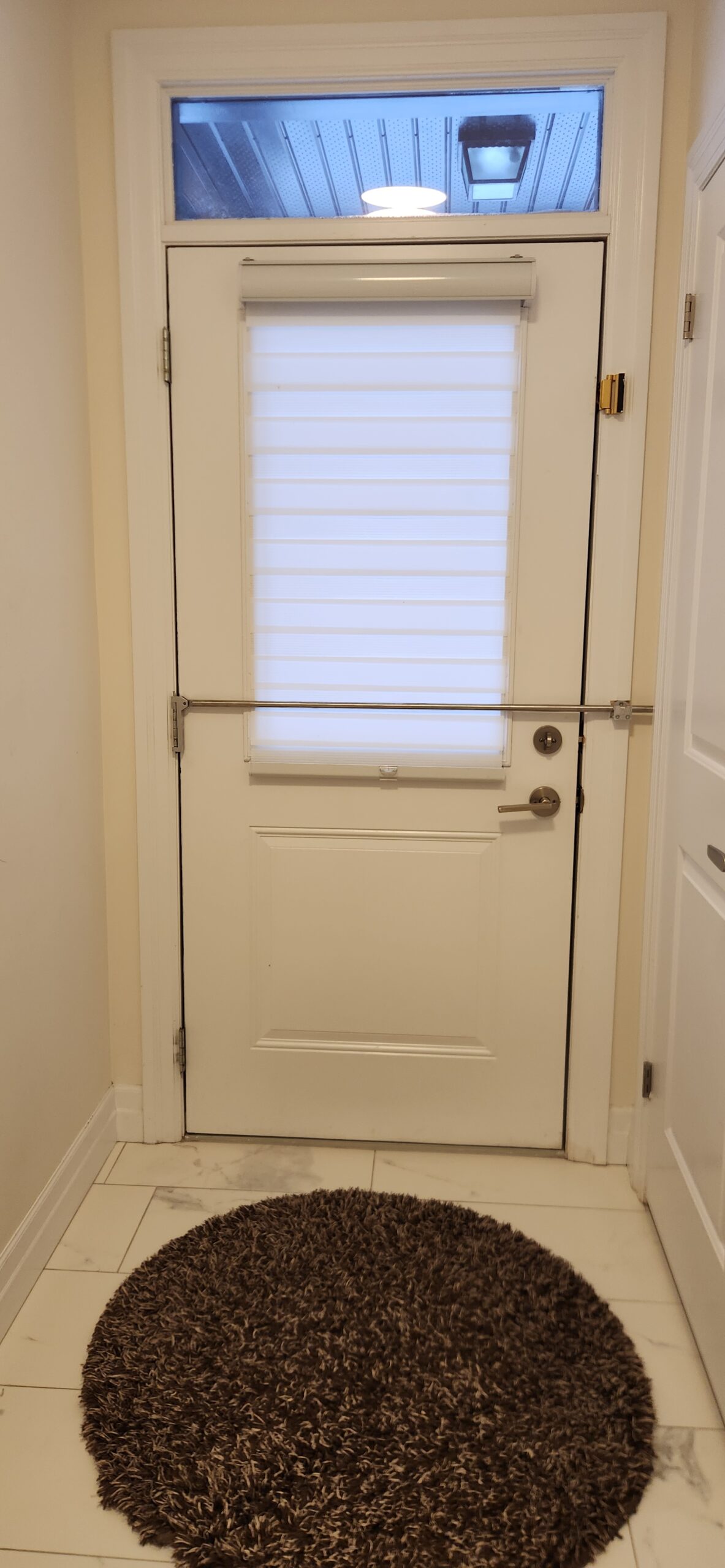

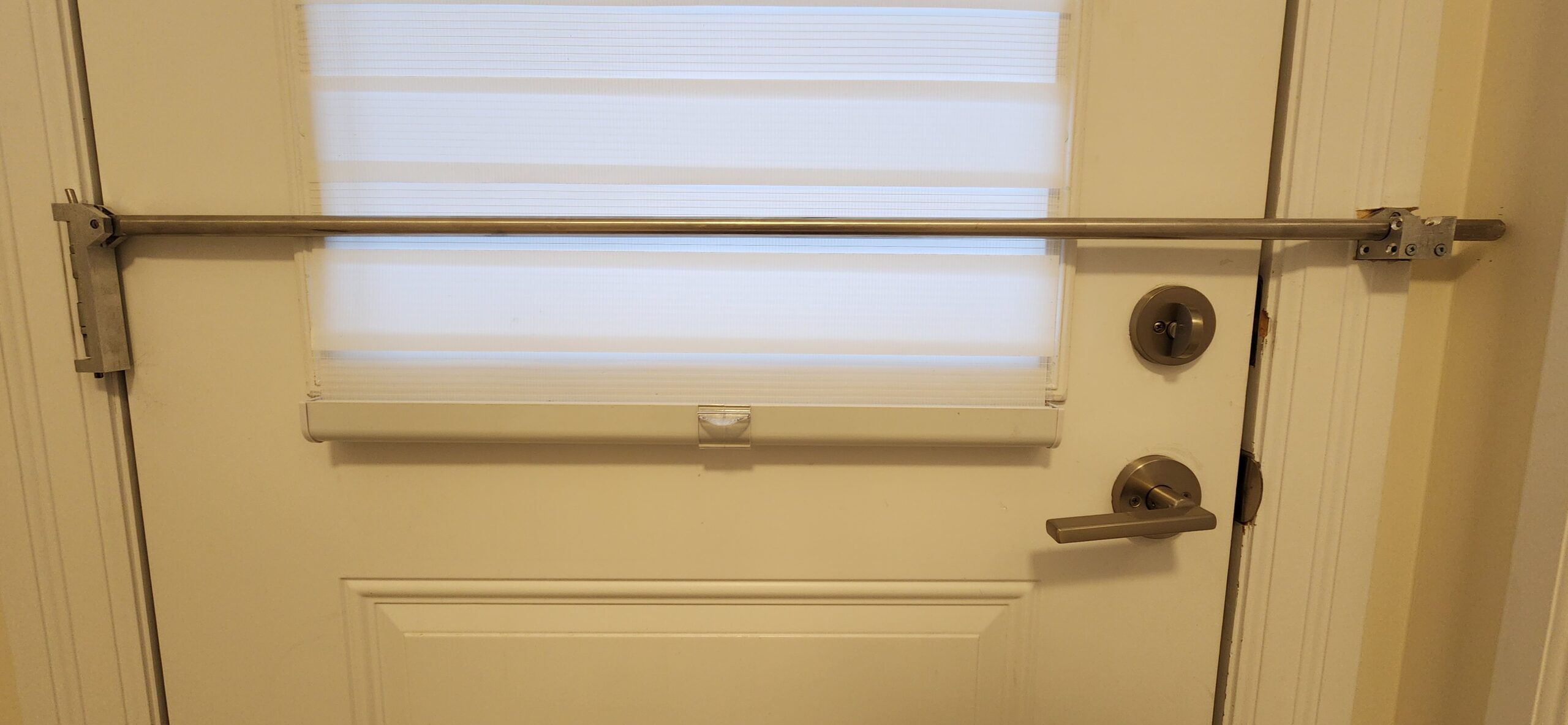

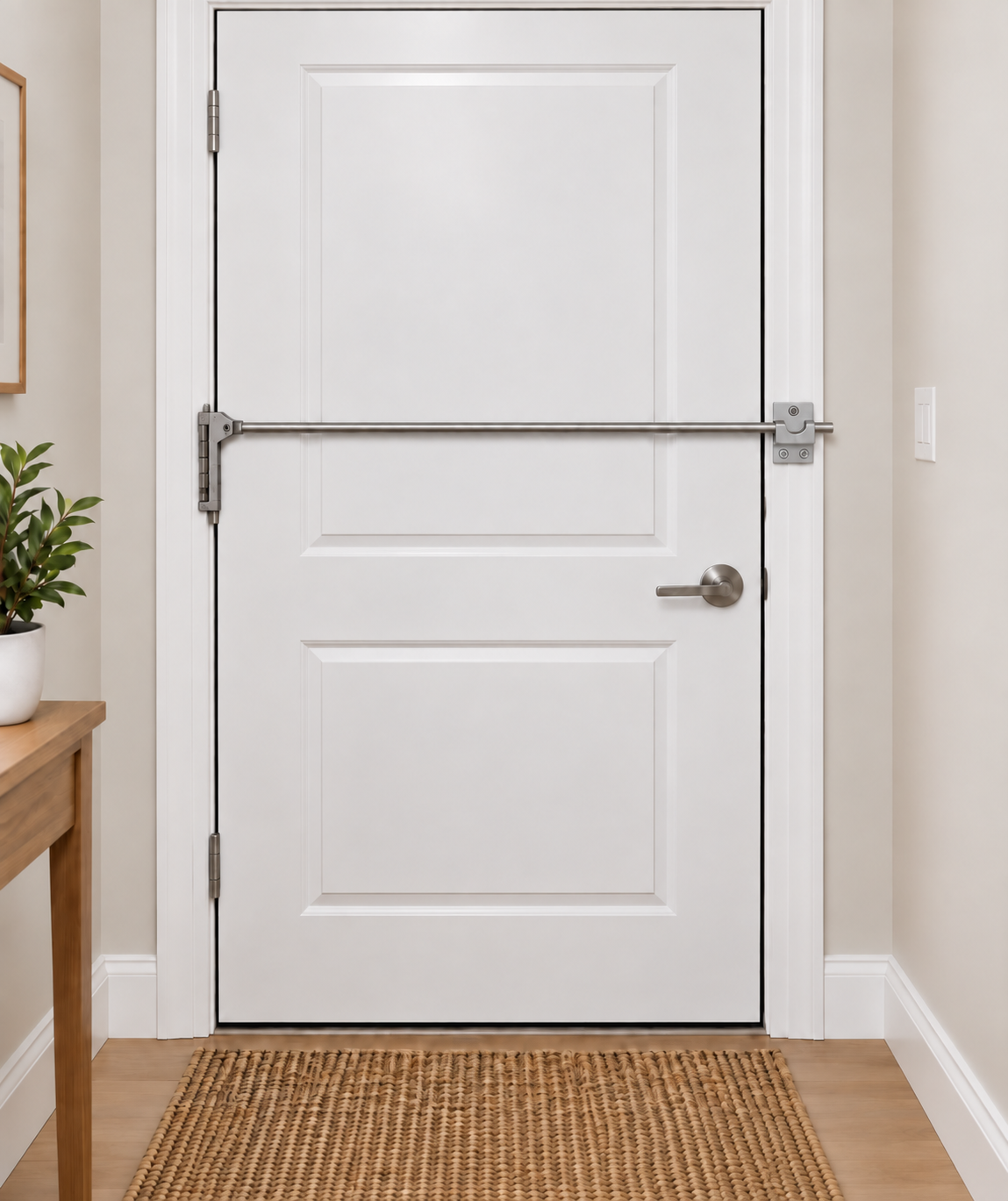

The AM Security Door Bar is a safety barrier for main doors that is a challenge to breach. It is quick and easy to implement as the hinge end is always attached. The final step to achieve the Door Secured position requires the free end to be placed into the end bracket.

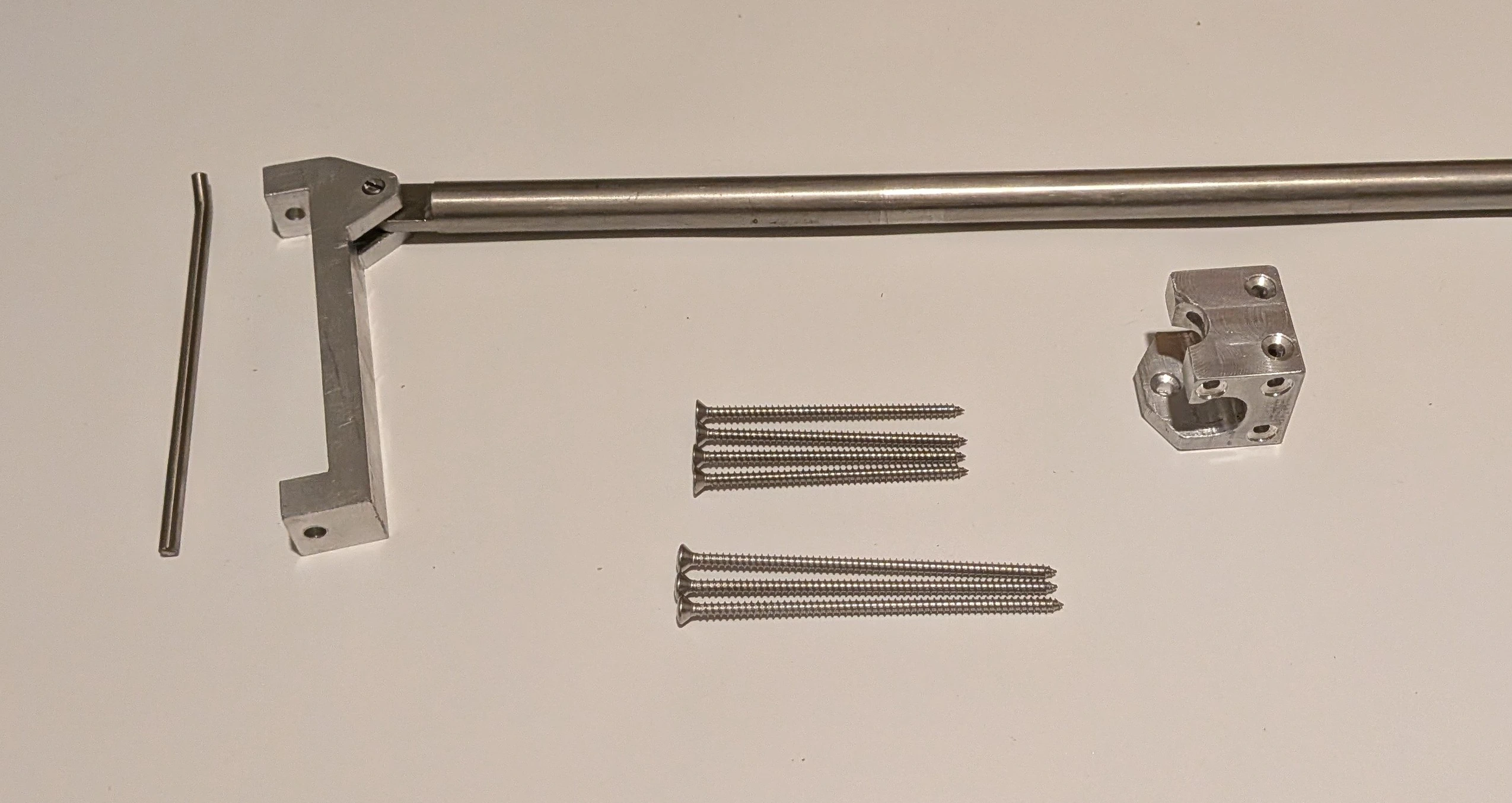

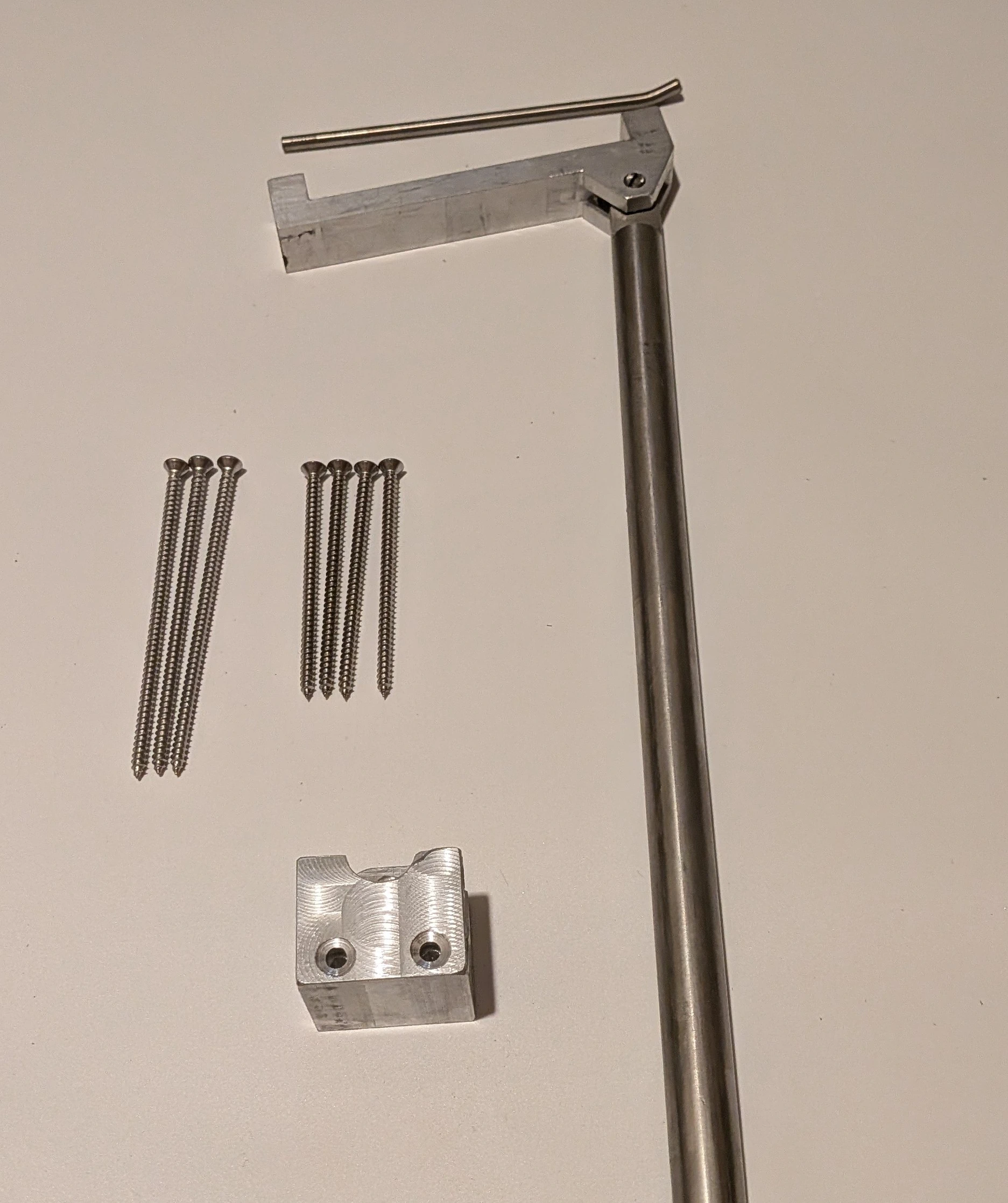

Components:
1 - 304 Stainless Steel bar 41.5 inches long (typically required for most 36-inch-wide doors) either 1⁄2” or 5/8” diameter bar.

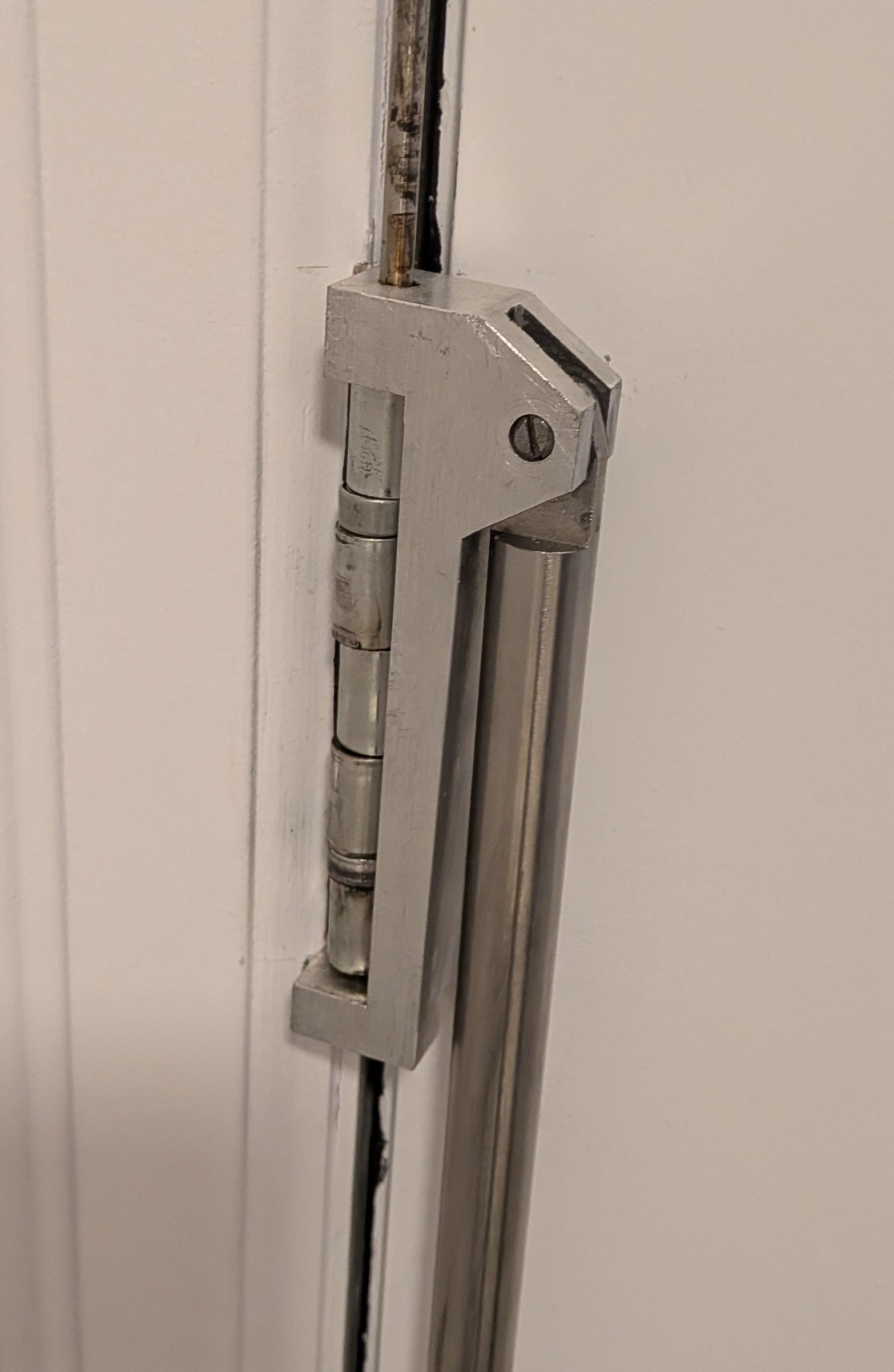

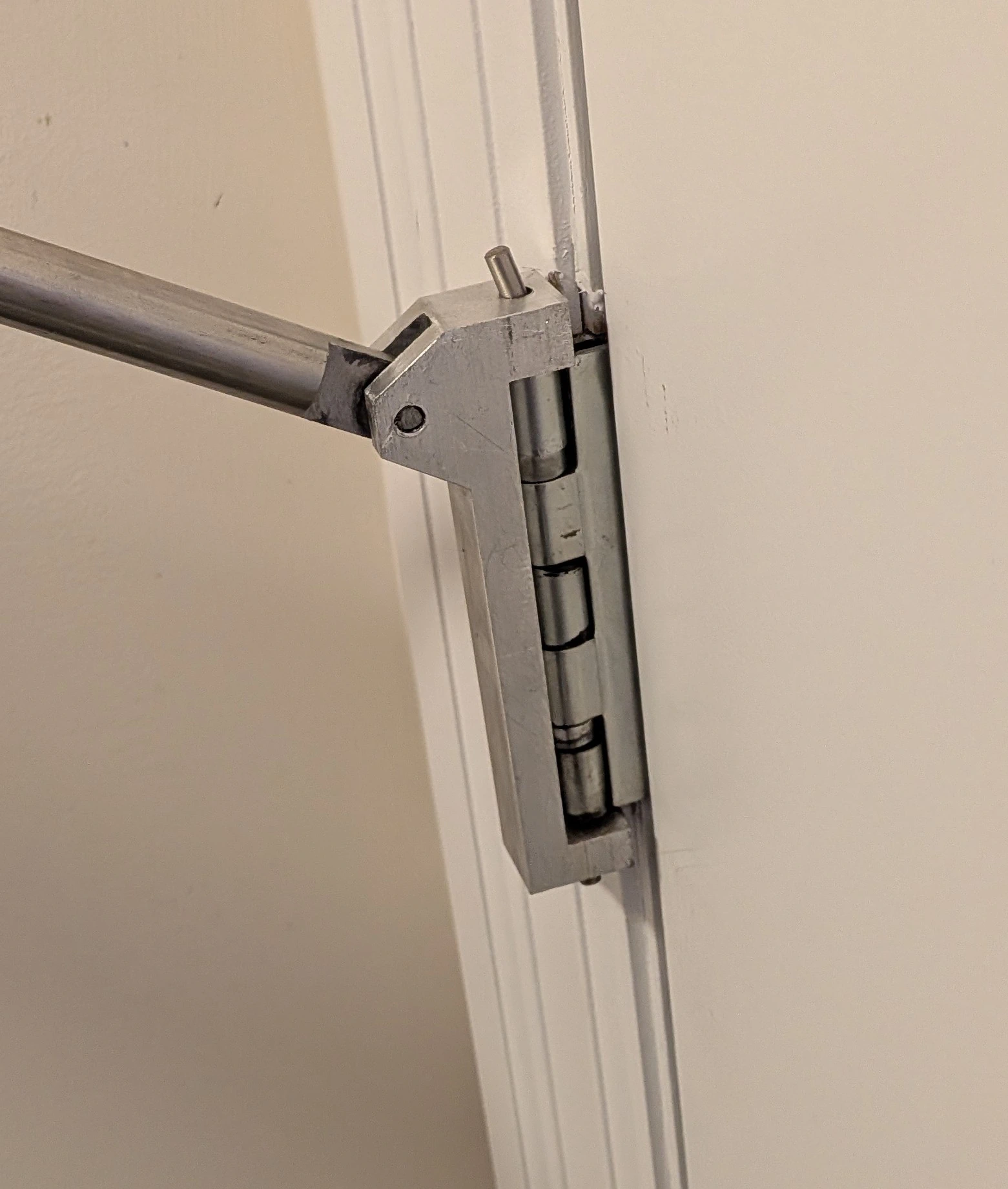

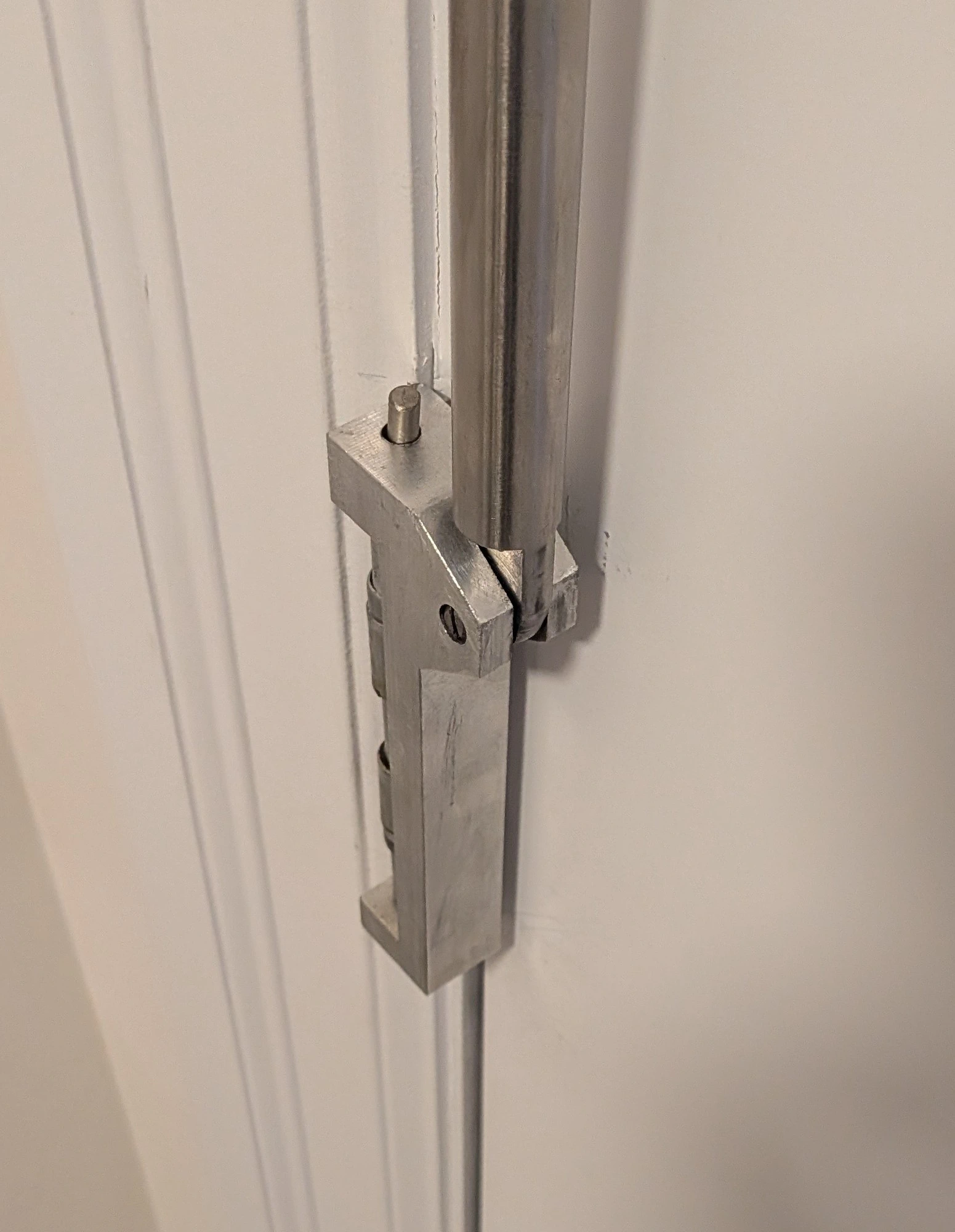

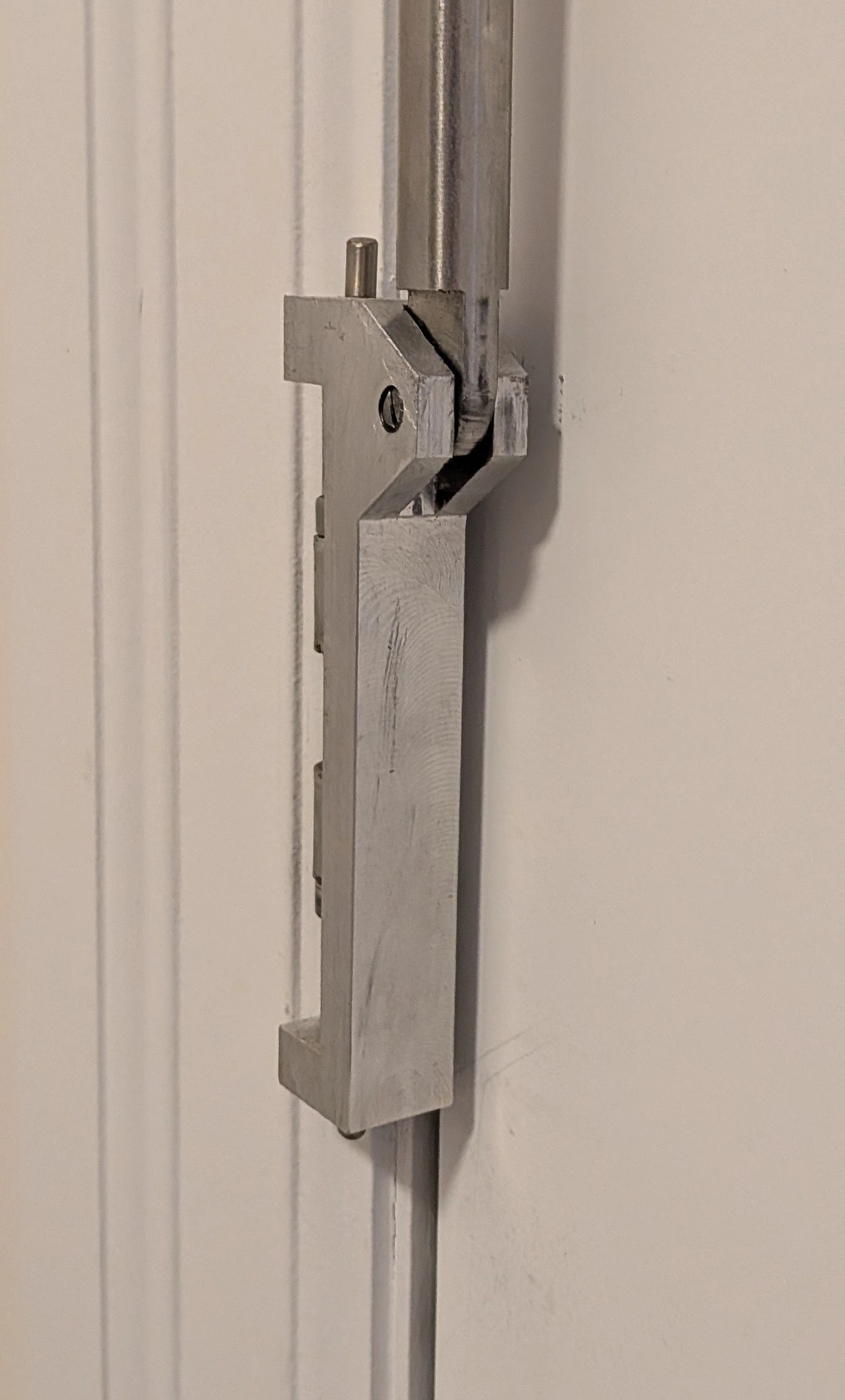

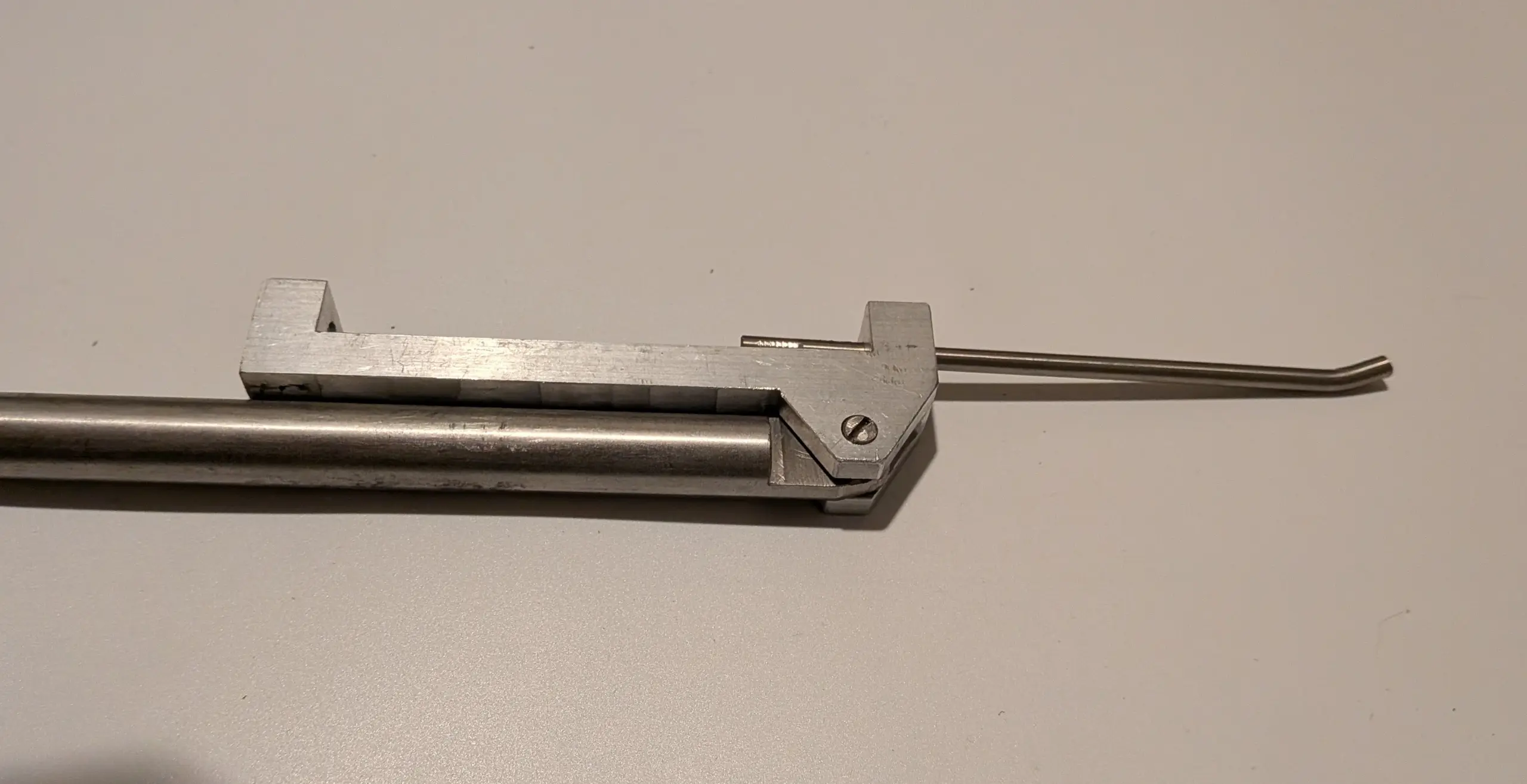

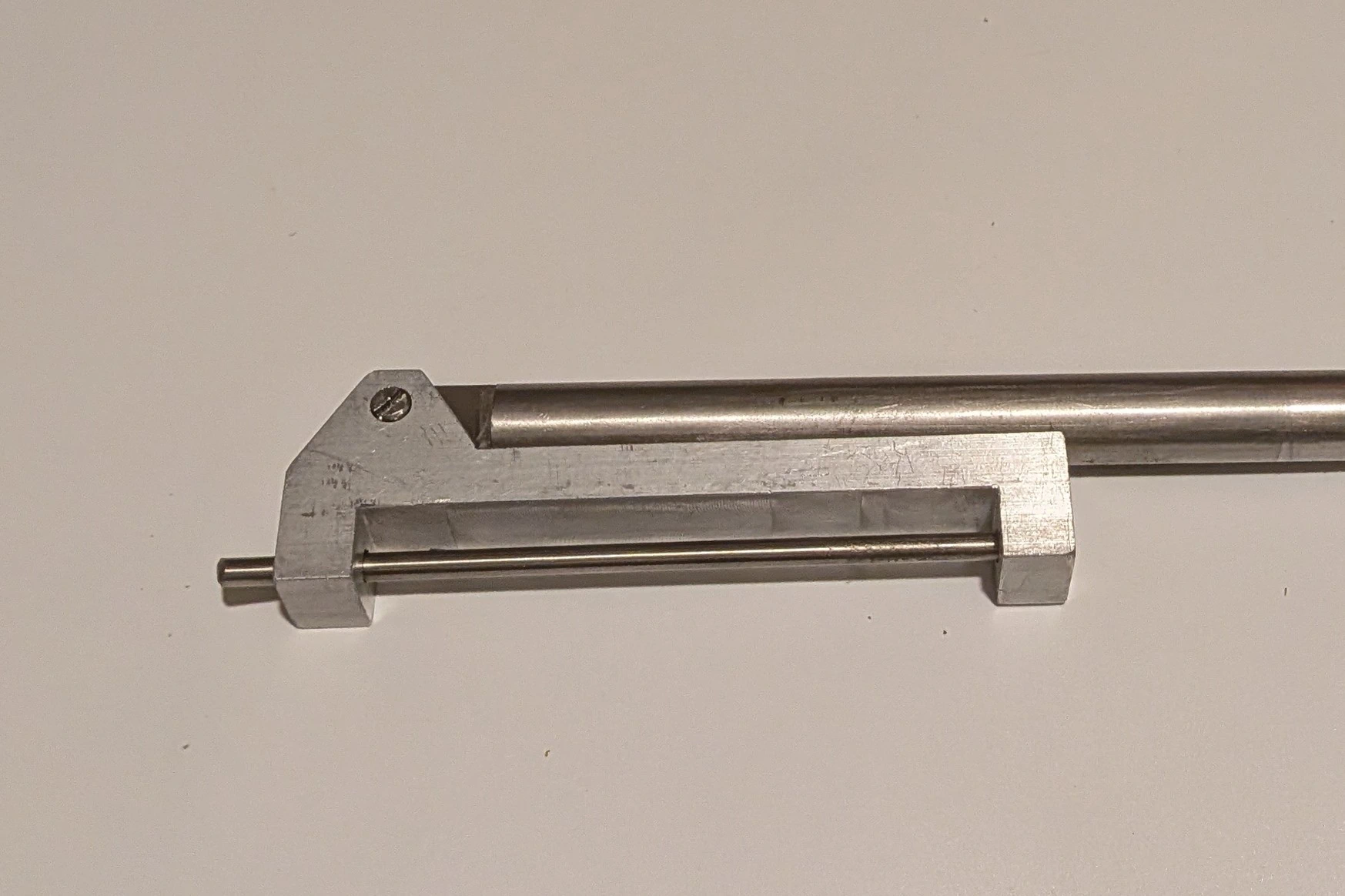

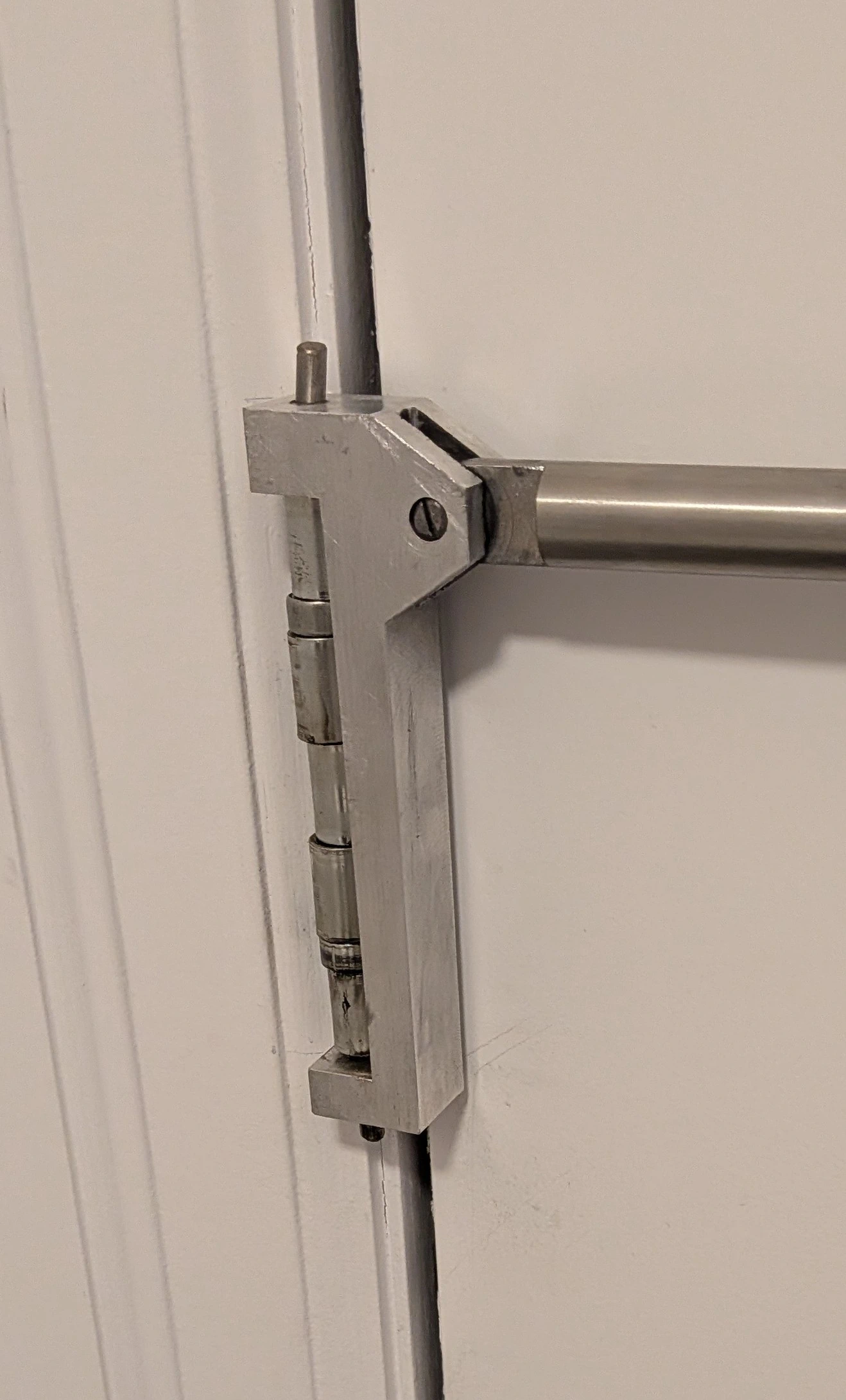

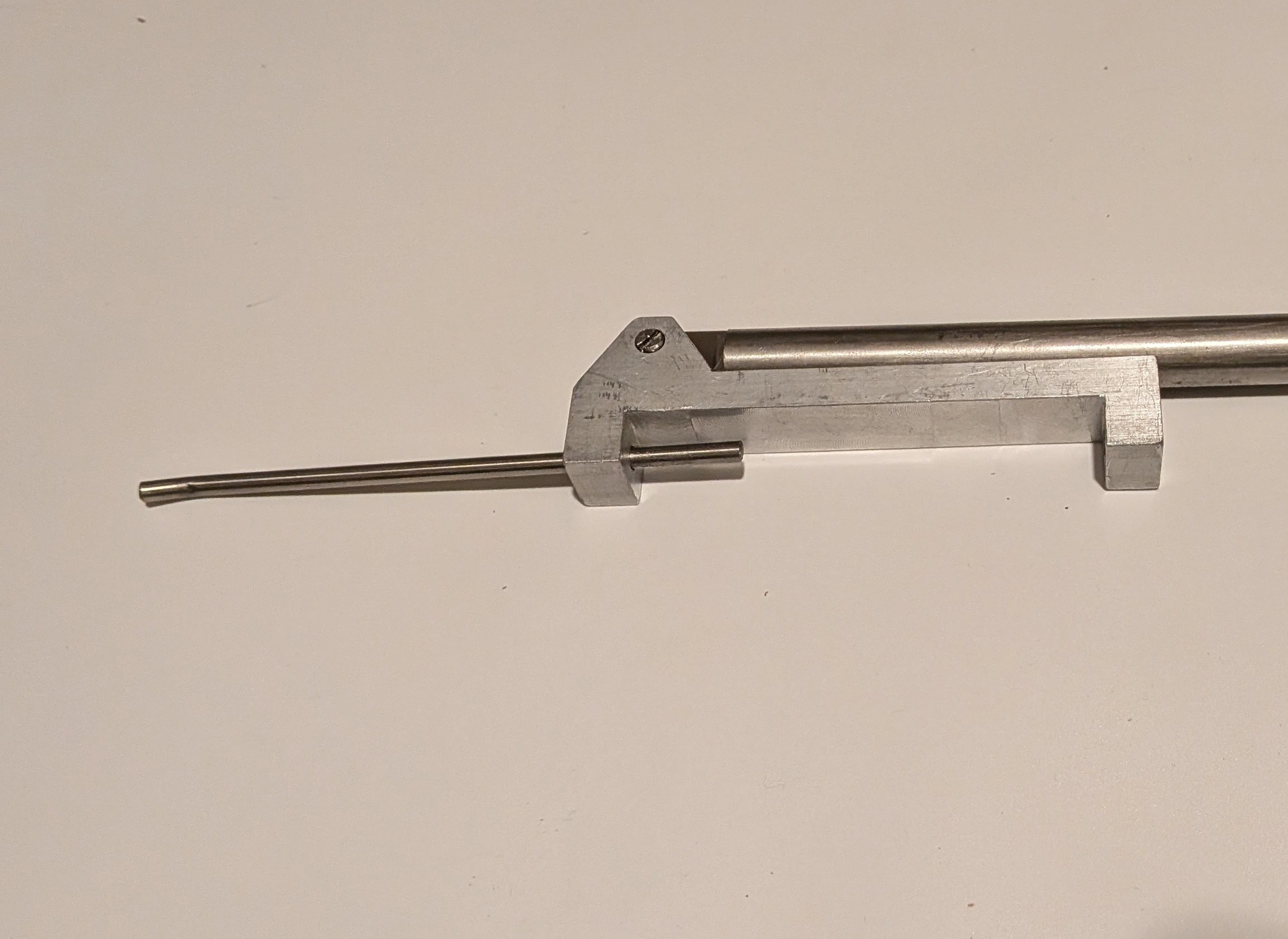

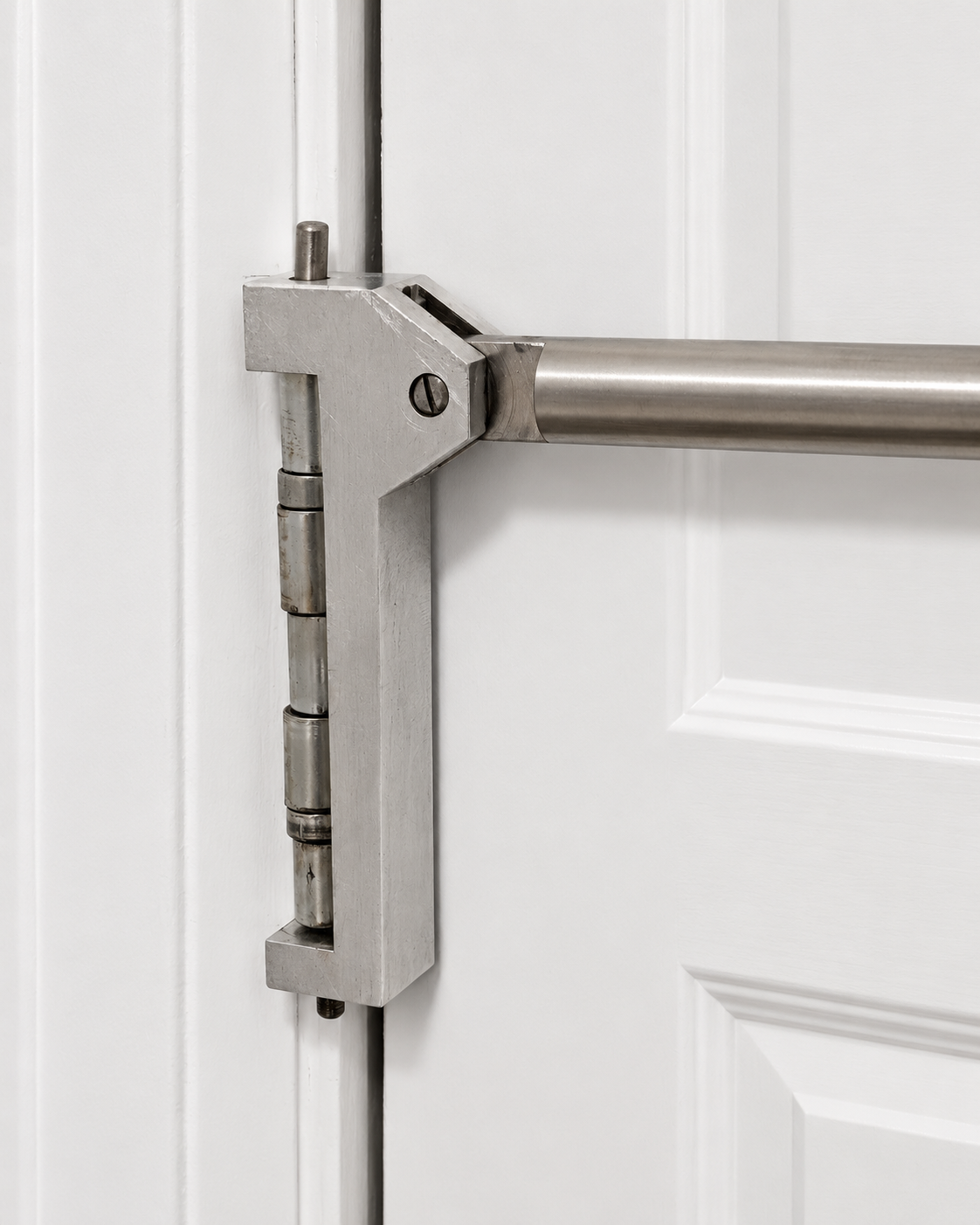

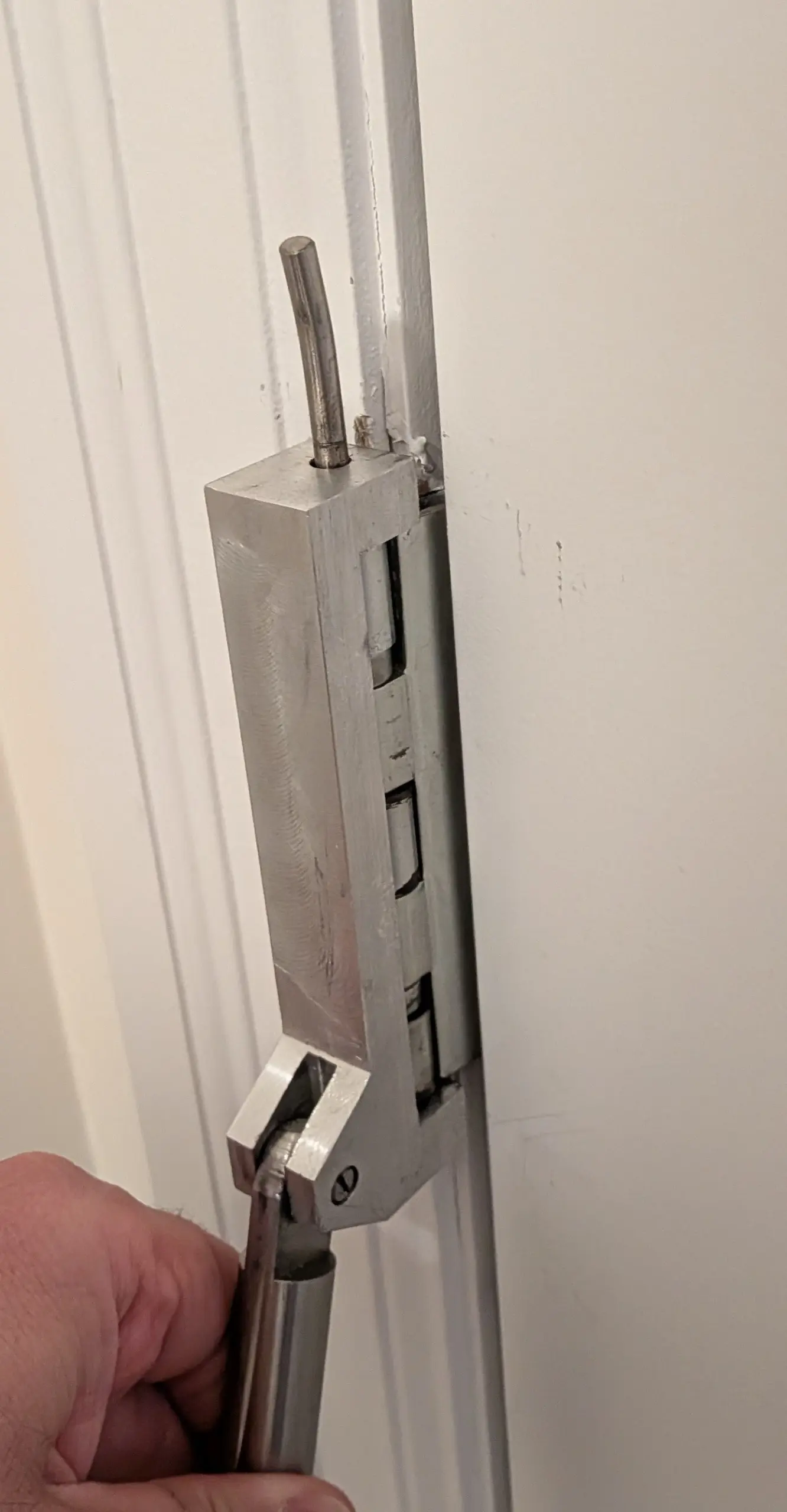

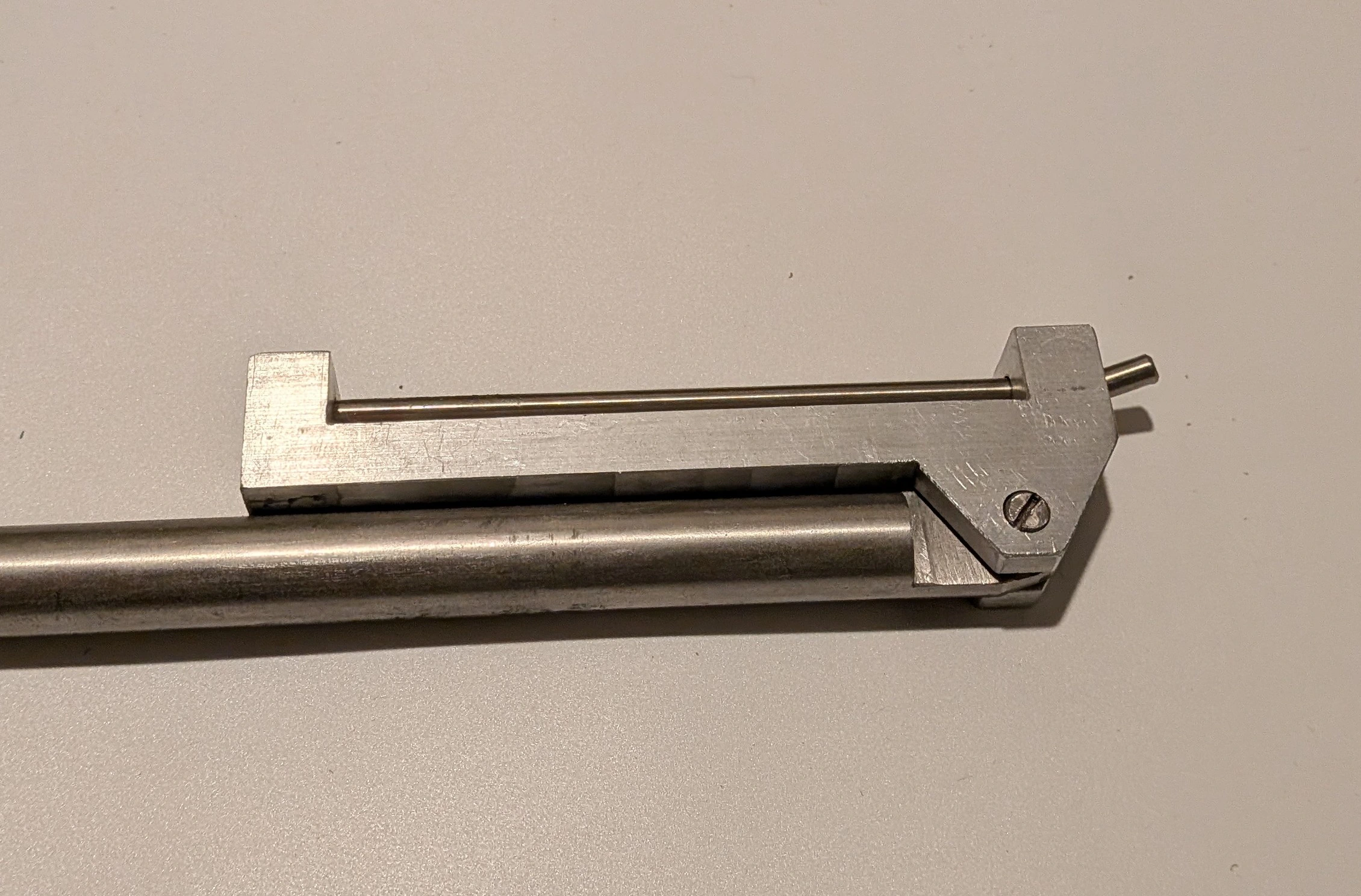

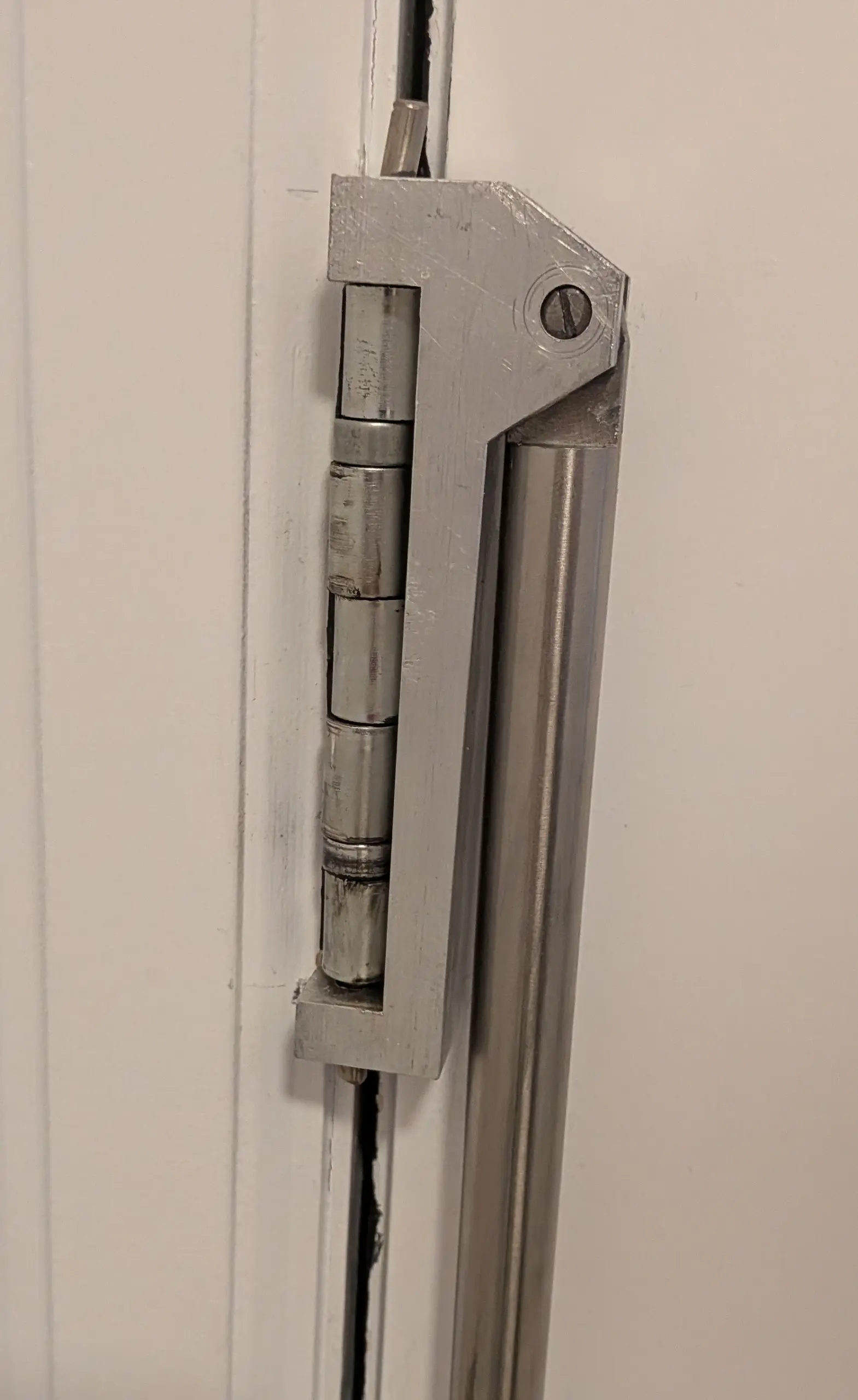

1 - Hinge Clip (aluminum) for straddling existing door hinge
1 - 304 Stainless Steel 3/16” hinge pin

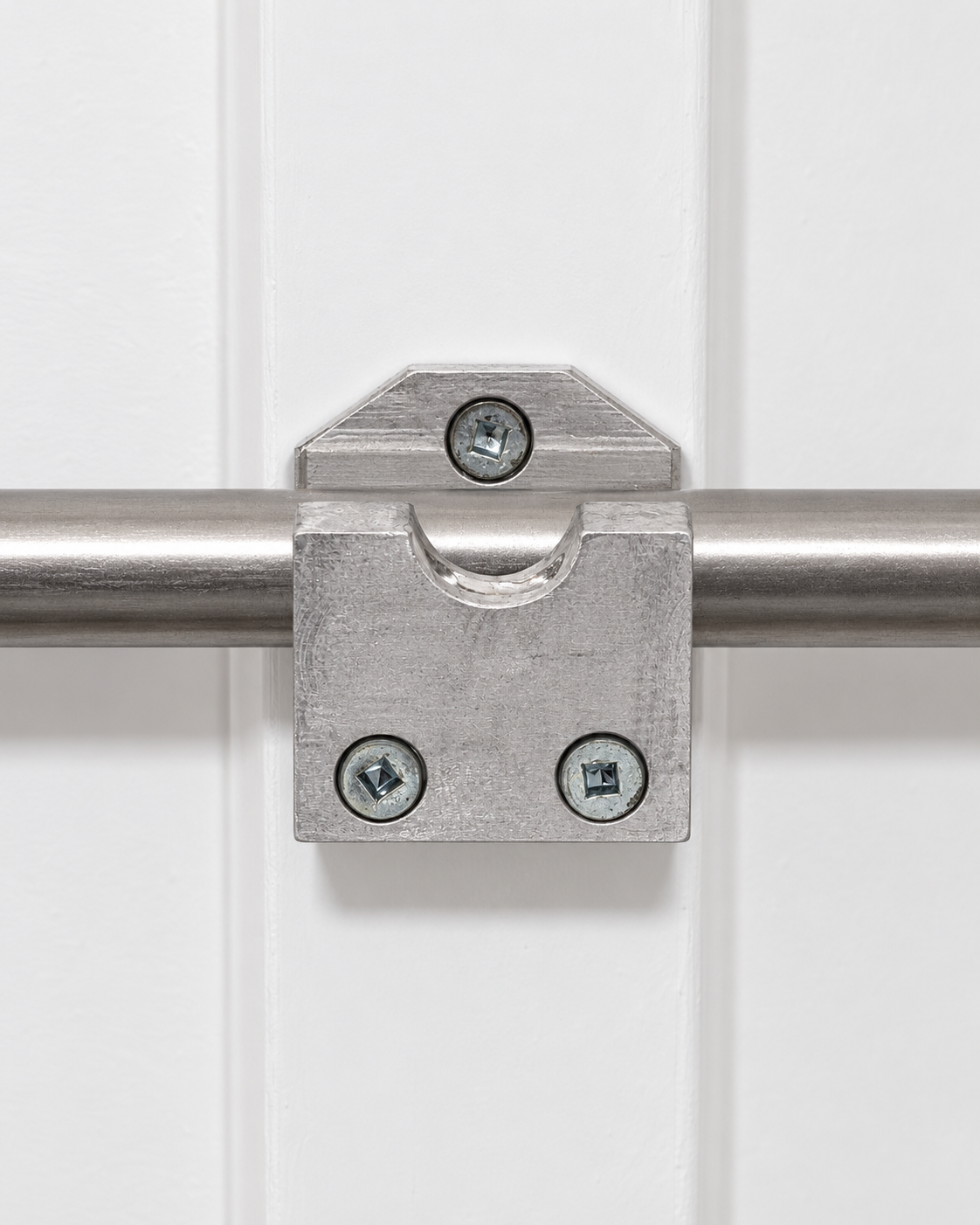

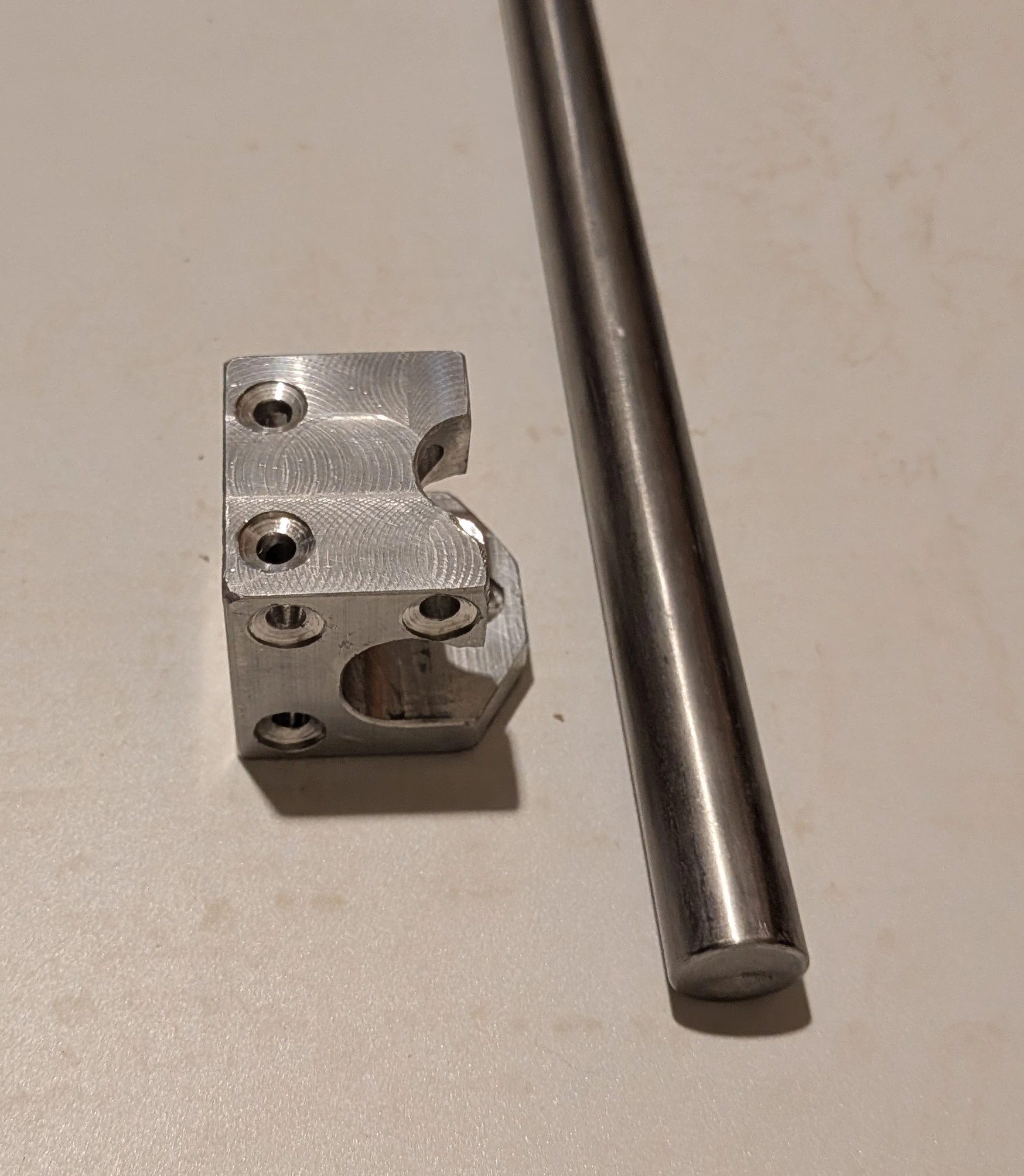

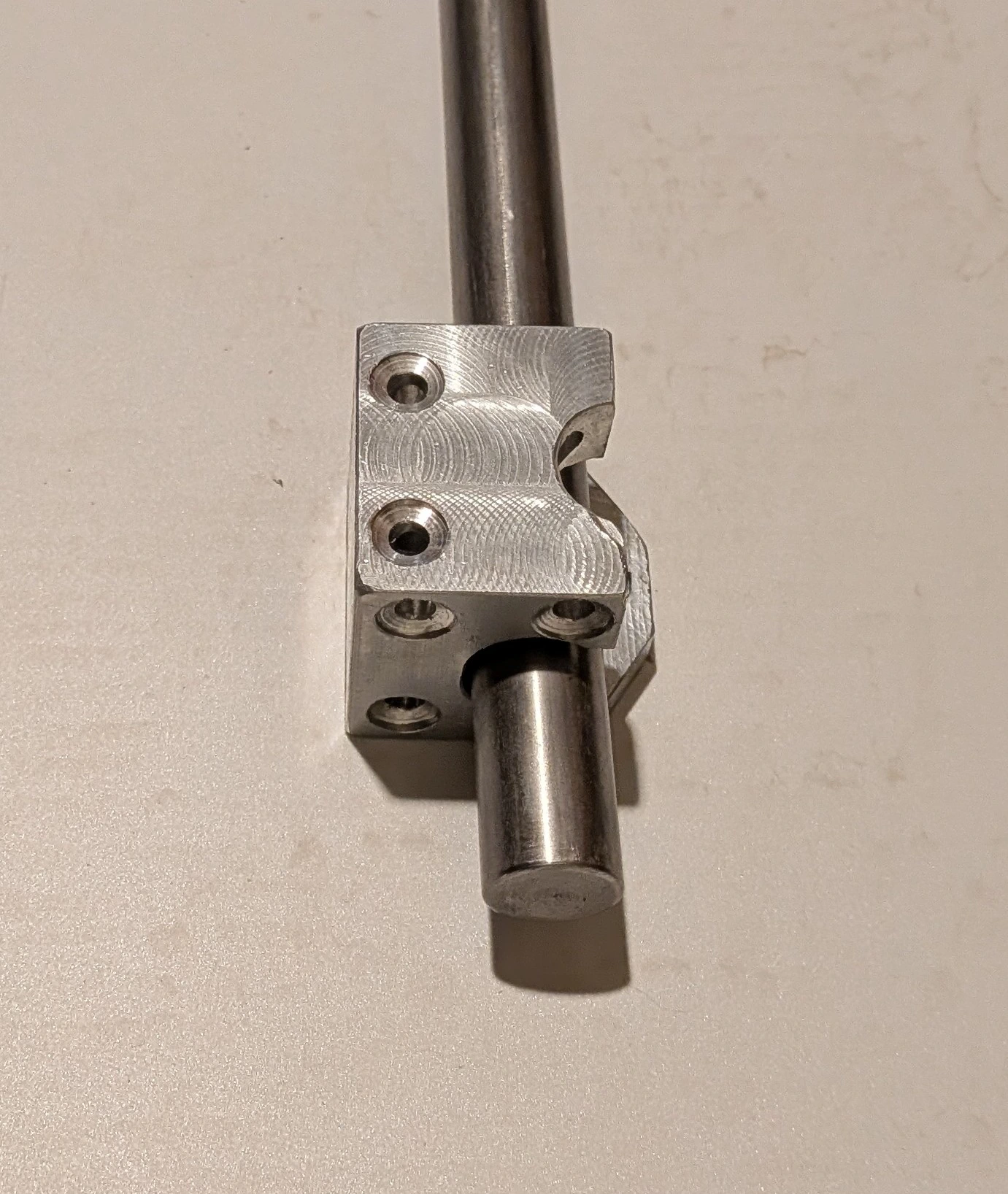

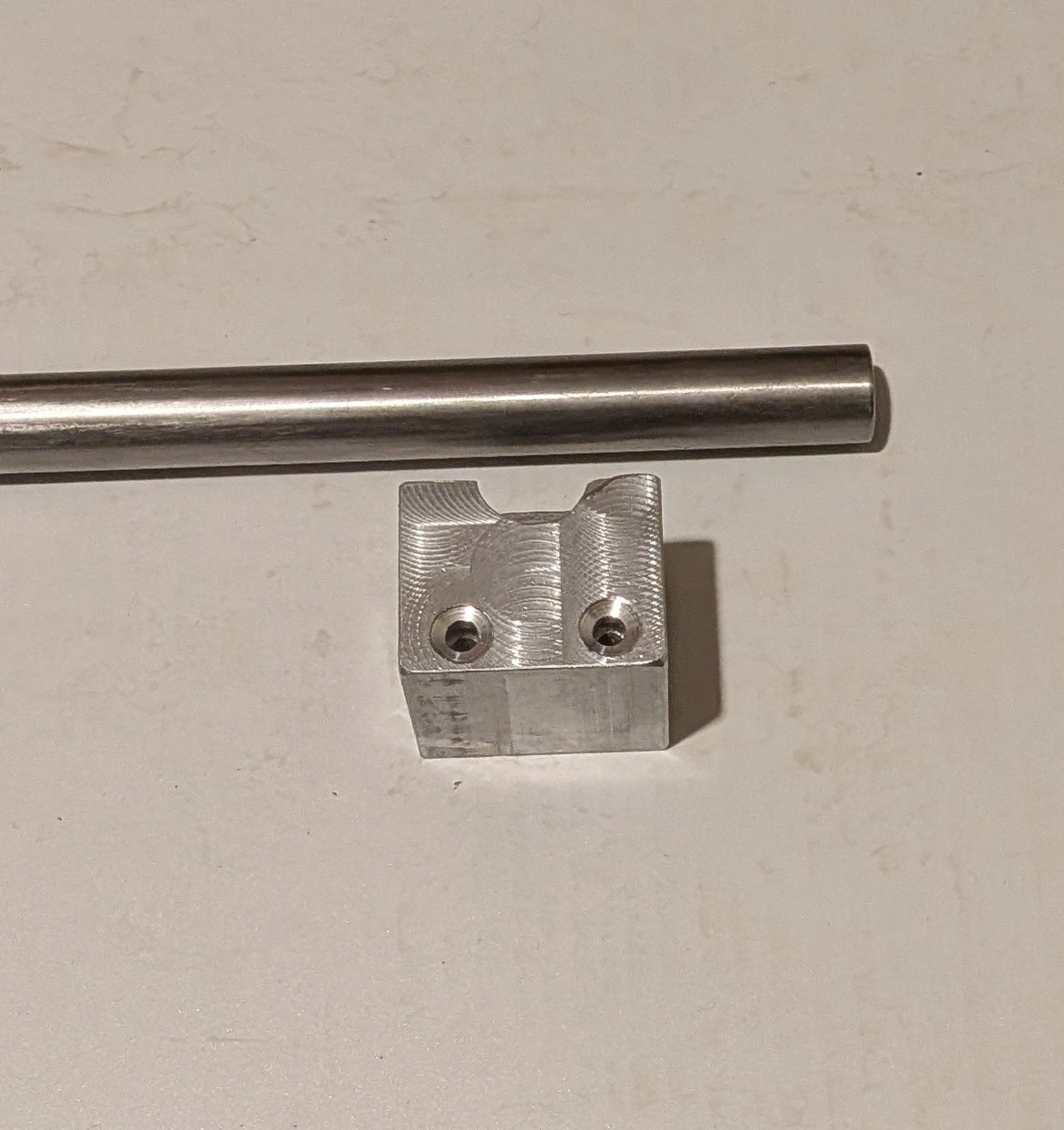

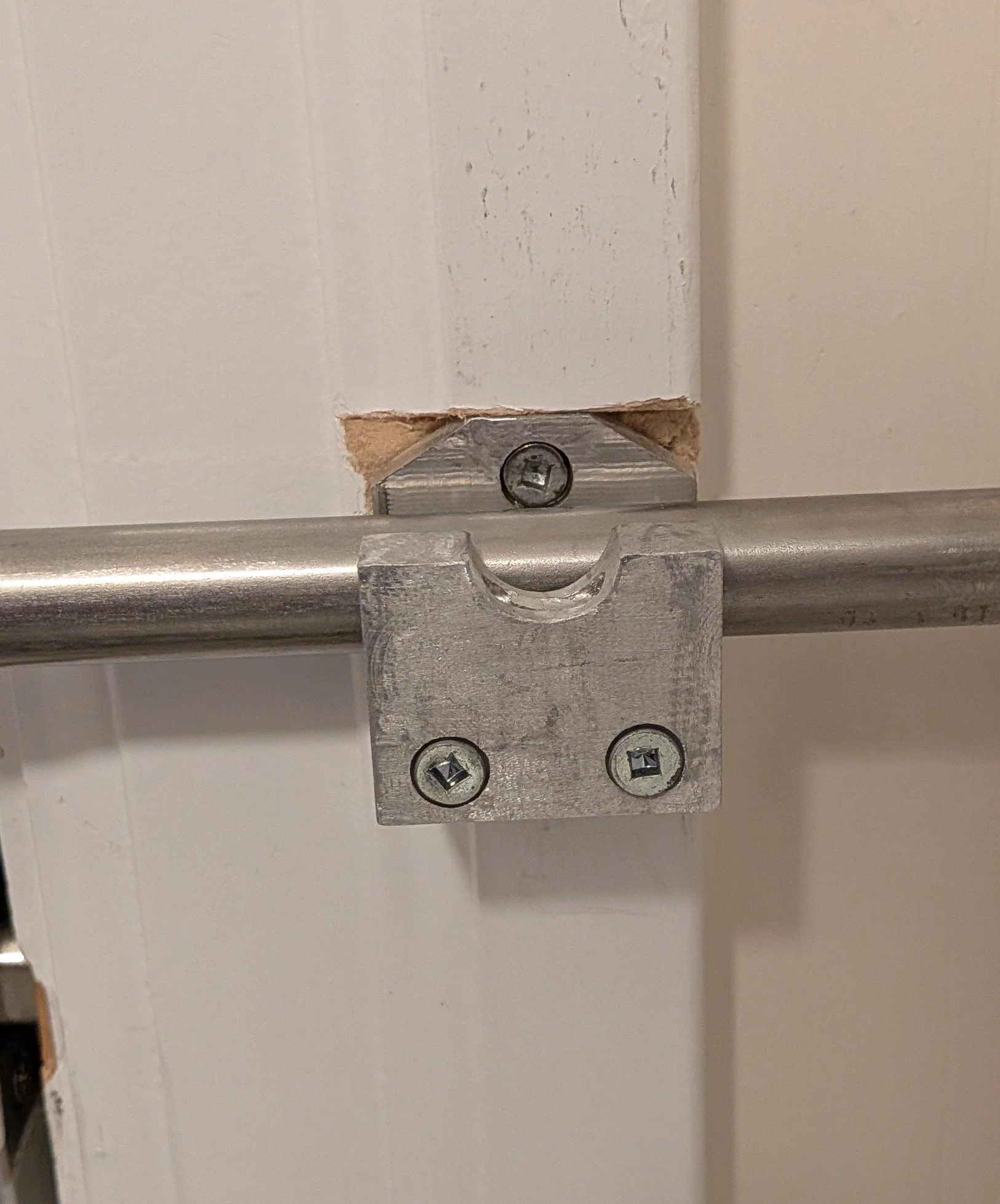

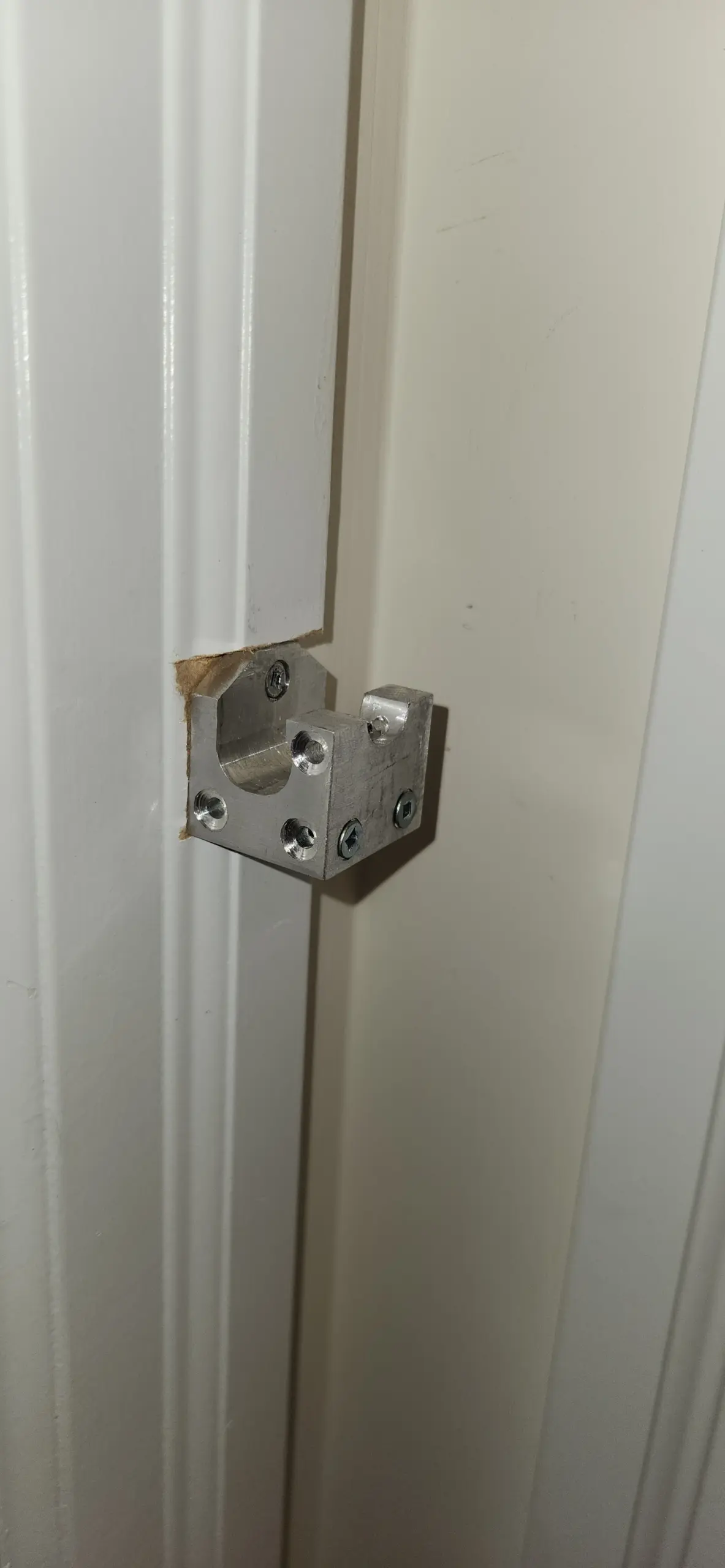

1 - End Bracket (aluminum) with a recessed slot to retain bar.
3 - #8 x 4” stainless wood screws (800 plus pounds pull strength when properly installed)
1 - 1/4” wooden shim to space aluminum holding bracket to clear standard door trim. (Additional shims, if required, are the responsibility of the Purchaser)
1 - 1/8” extended drill bit provided for pre-drilling holes

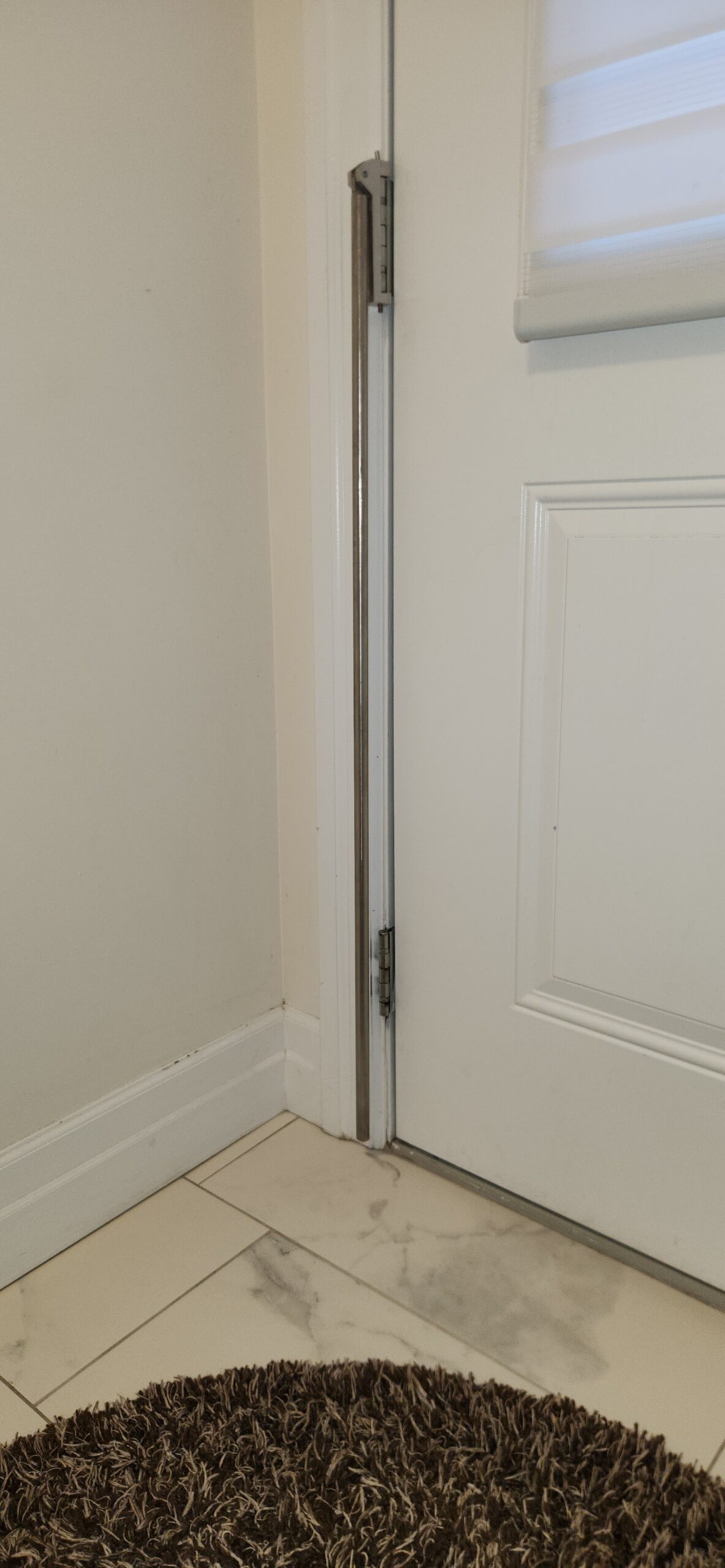

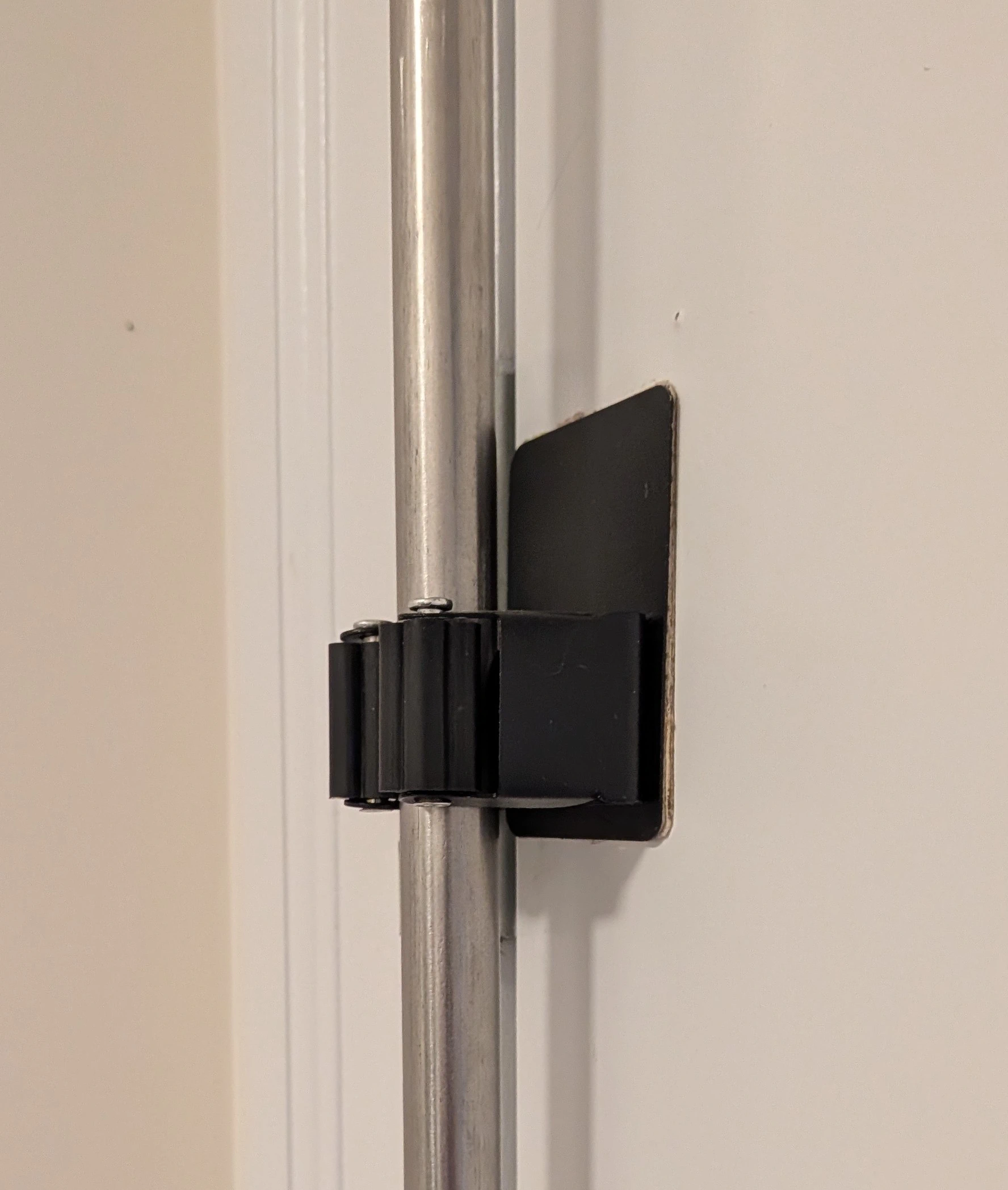

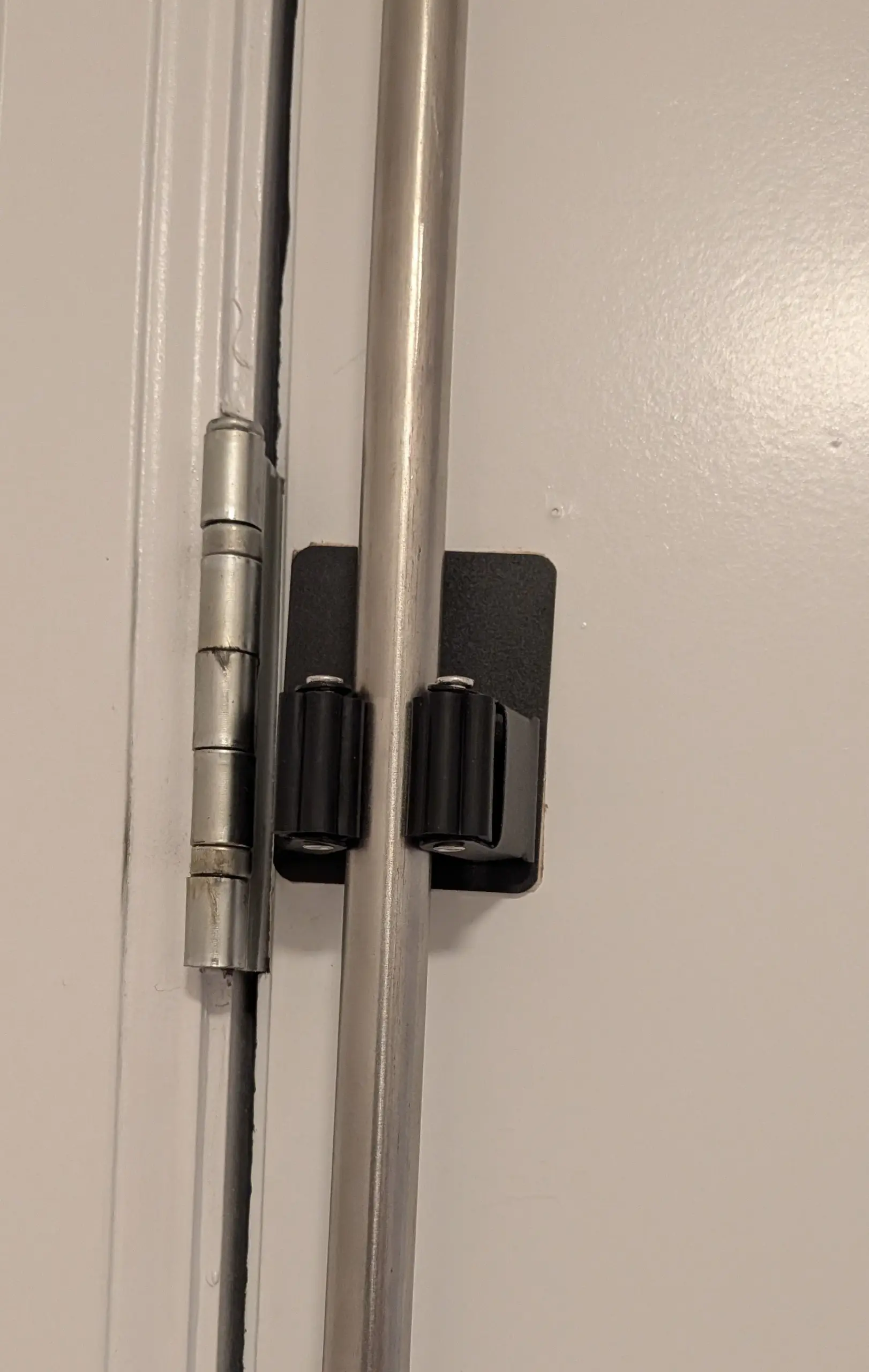

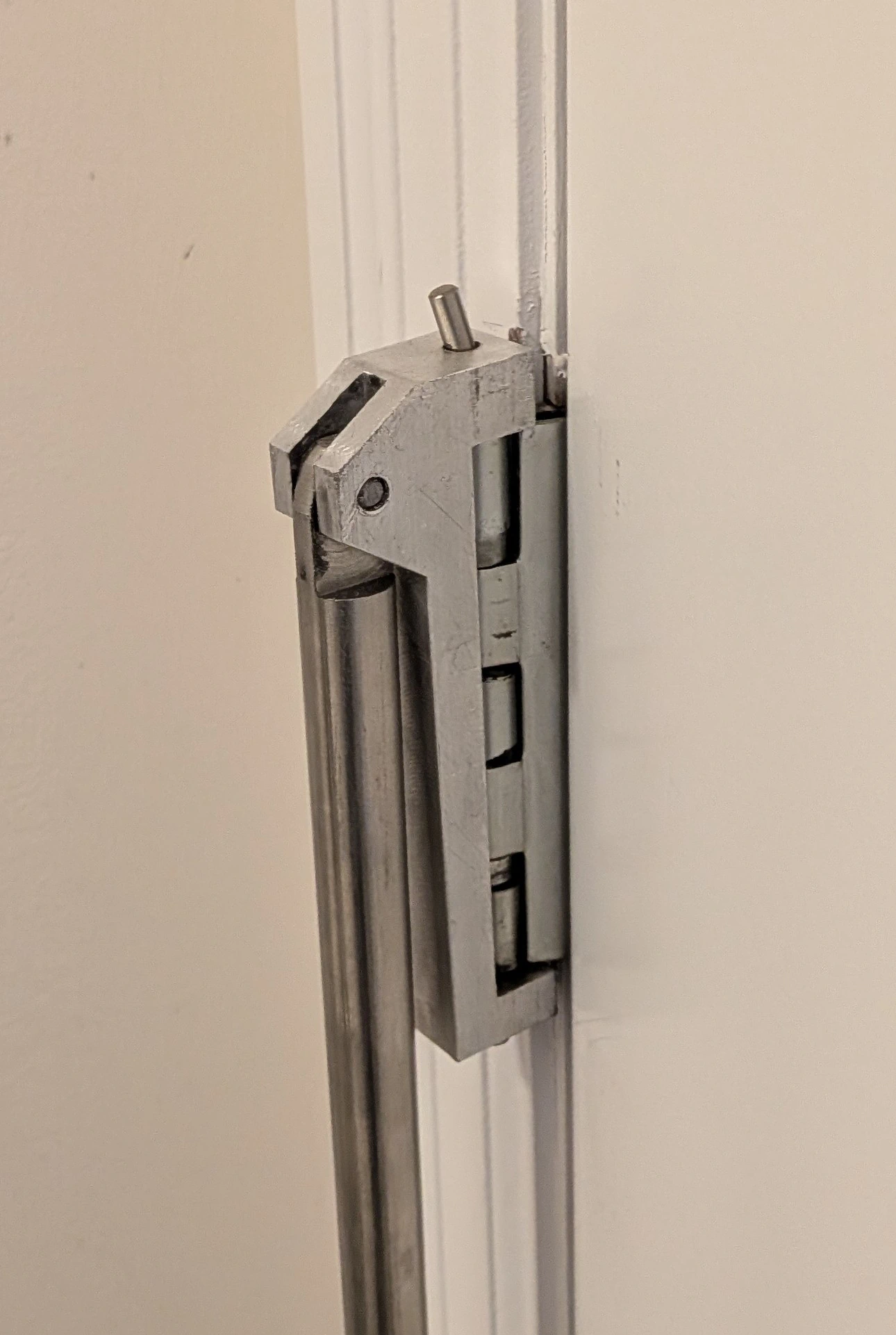

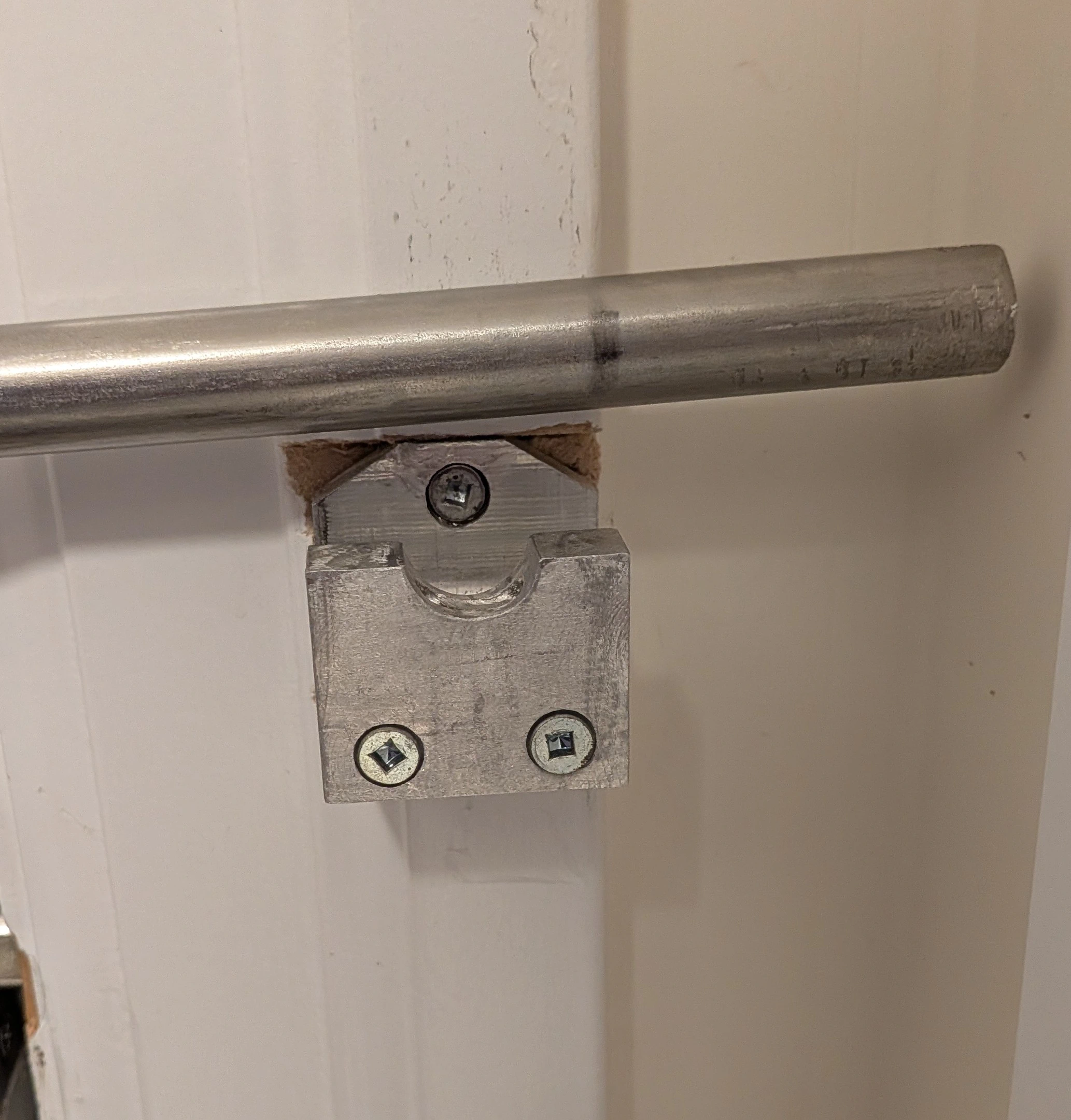

1 – Bar Retainer package for positioning the bar in upper or lower “at rest” position

NOTE: #8 screws are typical for connections into pine
#9 and #10 screws are better suited for denser wood such as Oak.
